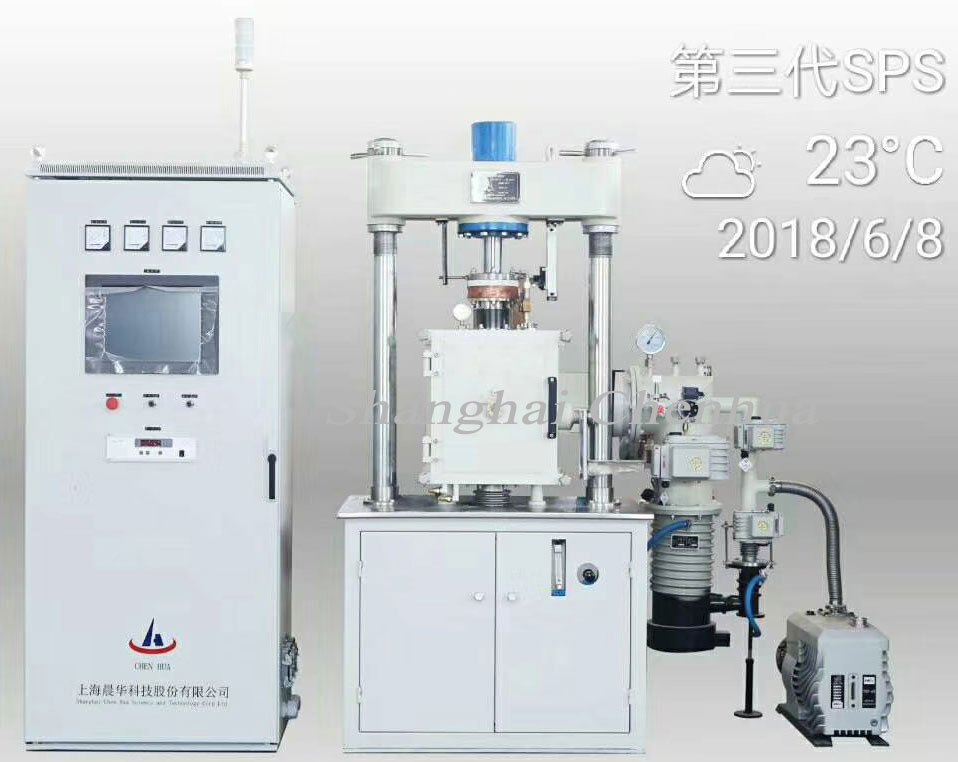

    3rd Generation Spark Plasma Sintering Furnace
    Fast sintering speed, better energy saving, high efficiency
    Online consulting customer service
    Share with：
    Document download
    Online inquiry and order
    details

    Application:

    SPS fast pressure sintering system is one of the most advanced fast hot press sintering systems in the world,

    characterized by  the fast sintering speed and high density sintering. It is the most powerful tool used to sinter

    the nanophase material, gradient functional material, mesoporous nanoscale thermoelectric material, rare earth

    permanent magnetic material, alloy glass nonequilibrium material and biological material.

    Main technical parameters：

    ModelRated powerOutput currentInput voltageMax.   temperatureMax. pressureSample sizePunch   displacementFinal vacuum
    SPS-10T-5-III50KW0-5000A0-10V2300℃10TØ50mm100mm10Pa
    SPS-20T-10-III100KW0-10000A0-10V2300℃20TØ100mm100mm10-3Pa
    SPS-20T-20-III200KW0-20000A0-10V2300℃20TØ200mm100mm10-3Pa
